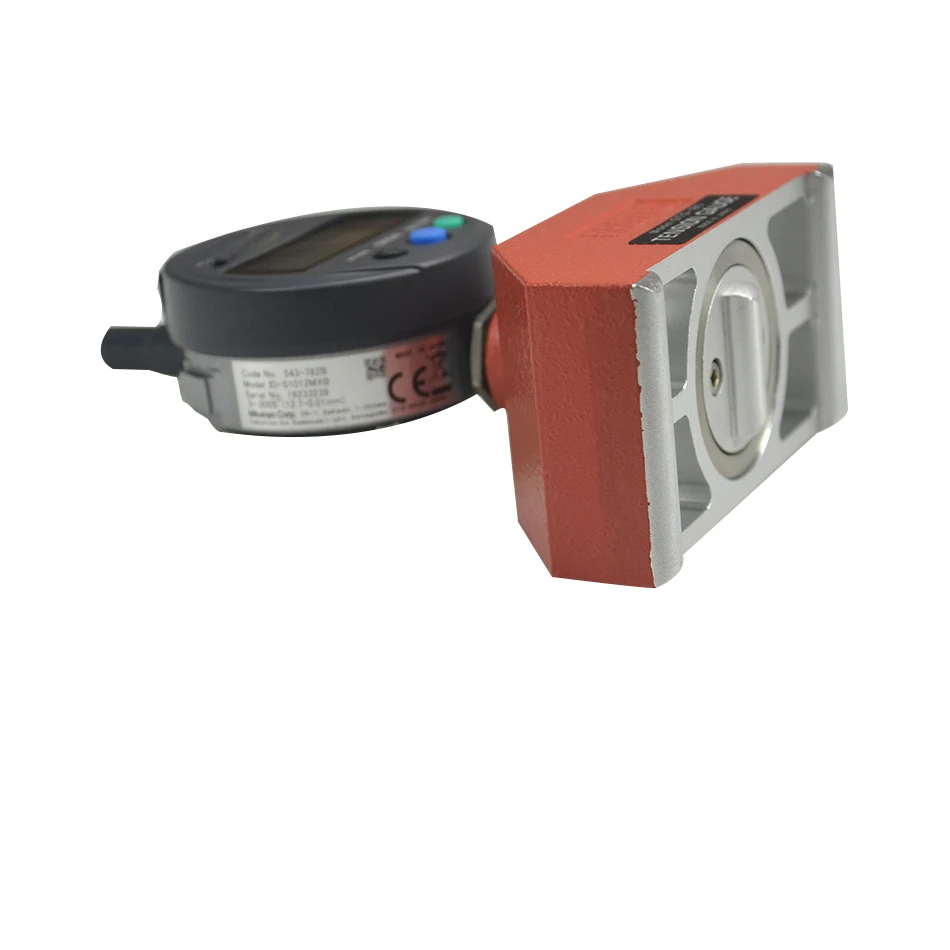

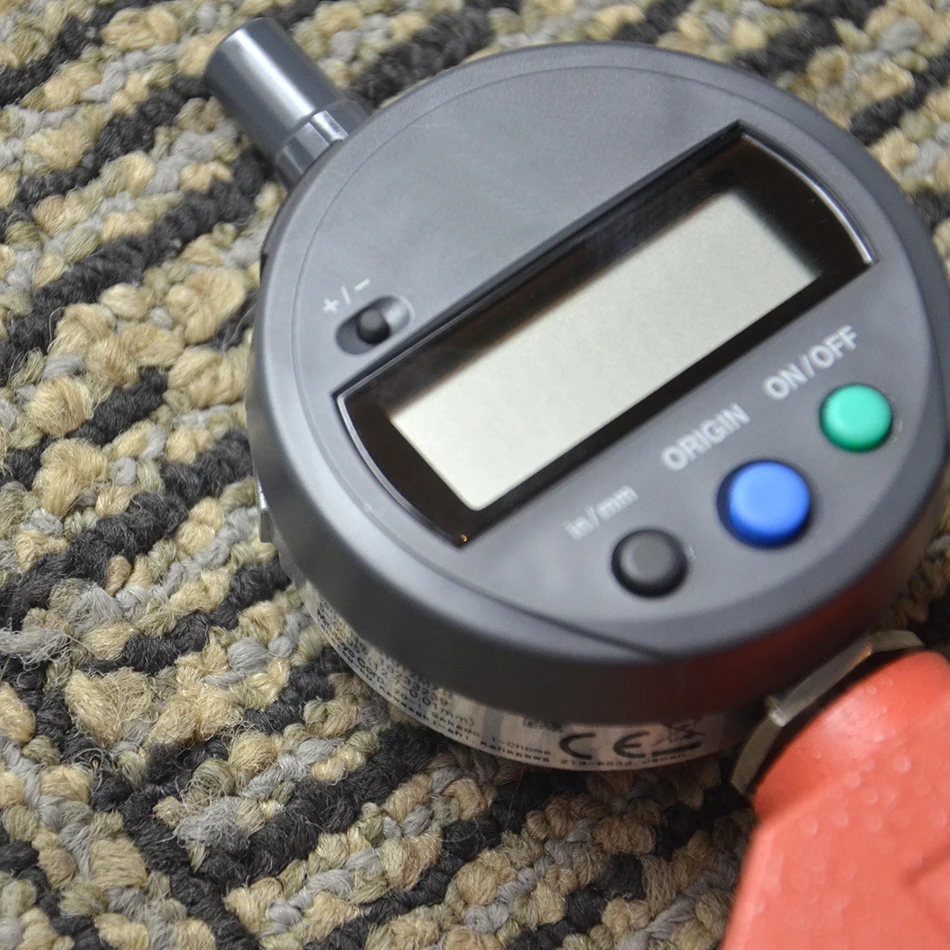

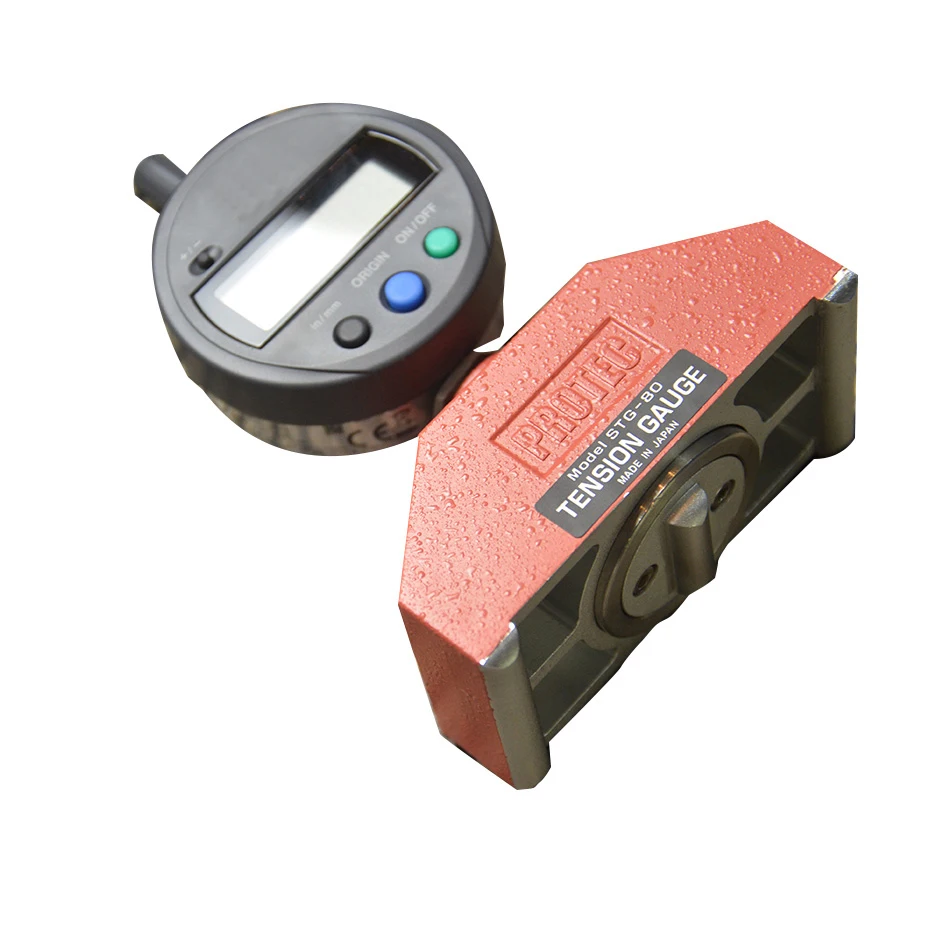

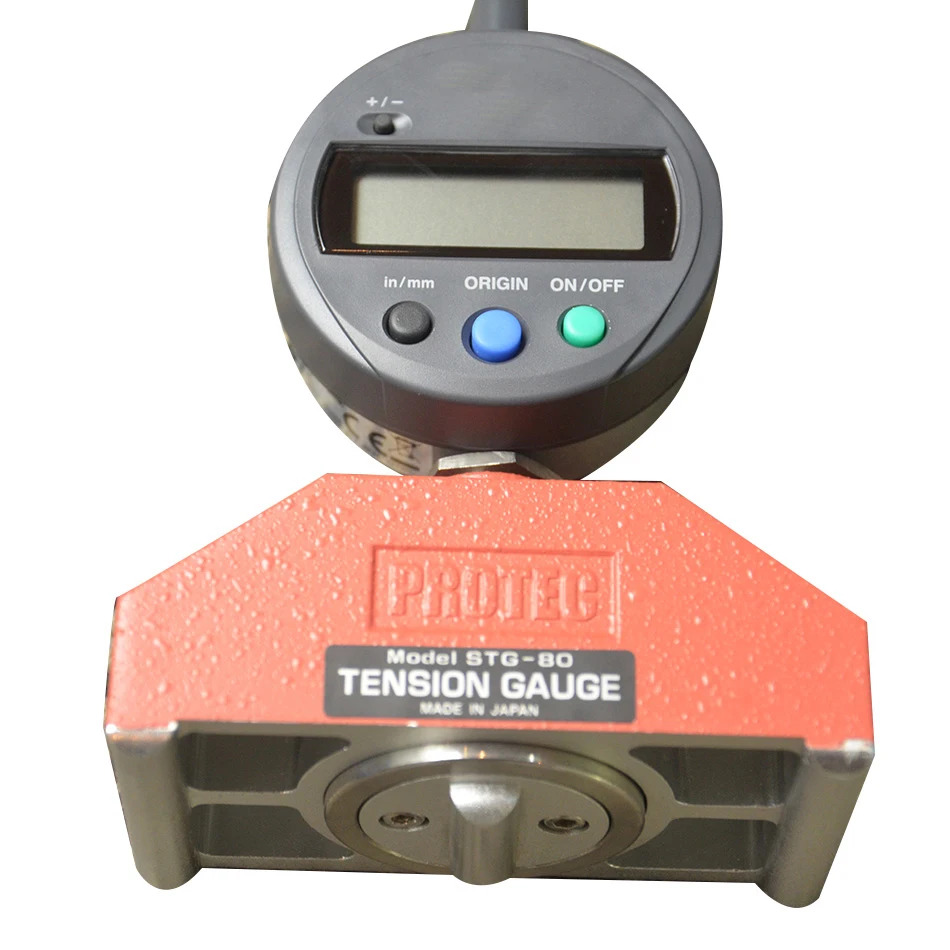

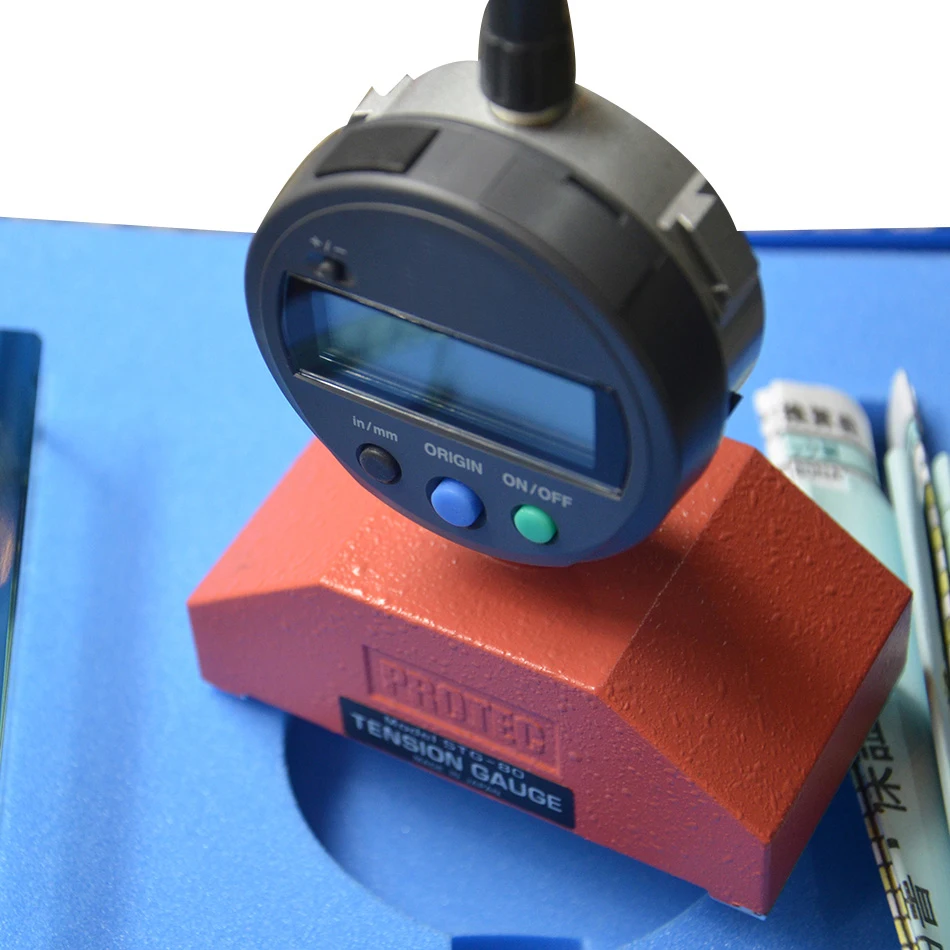

Japan STG-80D steel mesh tension meter PROTEC screen tension meter stg-80d tension measuring instrument
Japan PROTEC STG-80NA / STG-80D tension meter / screen tension meter profile
Tension management is a very important part of the precision screen printing process, the tension value of the setting with the printing of many different conditions change.Therefore, the size of the network frame, network (steel) version of the material, mesh and printing The pressure of the ink, the viscosity of the ink, the gap between the net (steel) and the printed matter, the shape of the model (PATTERN), etc. are closely related
Screen printing technology at the same time, the demand is relatively expanded in the constant pursuit of high precision, high density of the screen printing process, to find out the most consistent under the conditions of the correct tension value (experience value), then become An important step in data organization.
Japan PROTEC STG-80NA / STG-80D tension meter / screen tension measurement principle
In the net (steel) version of the top of the application of a certain weight, resulting in a small amount of displacement (scale), through the instrument (analog or digital) to expand the amount of displacement detection, read the measured value.
This series of products, for the screen (SCREEN) tension of the strength or uneven, and developed mm and N / cm two measurement modes to choose from.
Japan PROTEC STG-80NA / STG-80D tension meter / screen tension meter Features:
It is more convenient to measure small plates from electronic parts to screen printing and dyeing. The instrument is a universal tension meter that meets these needs. Displacement measurement field is broad: 0.01 ~ 0.03mm. Not affected by the size of the screen, widely used in large and small screen of the force measurement.
